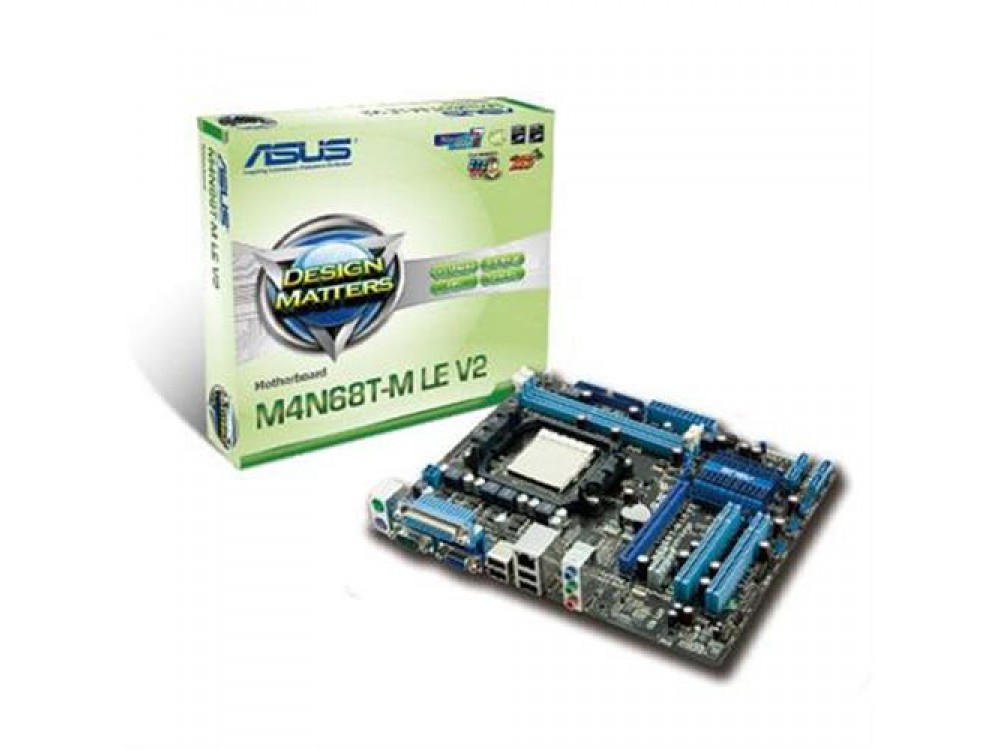

Asus Socket AM3 M4N68T-M LE V2 Motherboard M-ATX

Specifications



CPU	AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors AMD Cool 'n' Quiet™ Technology AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset	NVIDIA GeForce 7025 / nForce 630a
Memory	2 x DIMM, Max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
System Bus	Up to 2.0 GT/s
Graphic	Integrated Graphics Processor VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1440 @ 75 Hz Maximum shared memory of 256 MB
Expansion Slots	1 x PCIe x16 1 x PCIe x1 2 x PCI
Storage	Built-in Controller : 1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue 4 x SATA 3Gb/s port(s), blue Support Raid 0, 1, 5, 10, JBOD
LAN	Realtek® 8211CL-VB, 1 x Gigabit LAN Controller(s)
Audio	VIA VT1708S 8-Channel High Definition Audio CODEC *1 - Supports : Multi-streaming, Anti-pop Function
USB Ports	Built-in Controller : 10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking Features	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Special Features	ASUS Power Design : - ASUS EPU-4 Engine Turbo Key Core Unlocker ASUS Exclusive Features : - Anti-Surge - ASUS AI Net 2 ASUS Quiet Thermal Solution : - ASUS Q-Fan ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2
Back I/O Ports	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 2.0 1 x COM port(s) 1 x Parallel port(s) 3 x Audio jack(s)
Internal I/O Ports	3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x IDE connector(s) 4 x SATA 3Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)
Accessories	User's manual I/O Shield 1 x UltraDMA 133/100 cable(s) 2 x SATA 3Gb/s cable(s)
BIOS	8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a
Support Disc	Drivers ASUS PC Probe II Anti-virus software (OEM version) ASUS Update
Form Factor	uATX Form Factor 9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )



Item Condition
New	A brand-new, unused, unopened and undamaged item.
