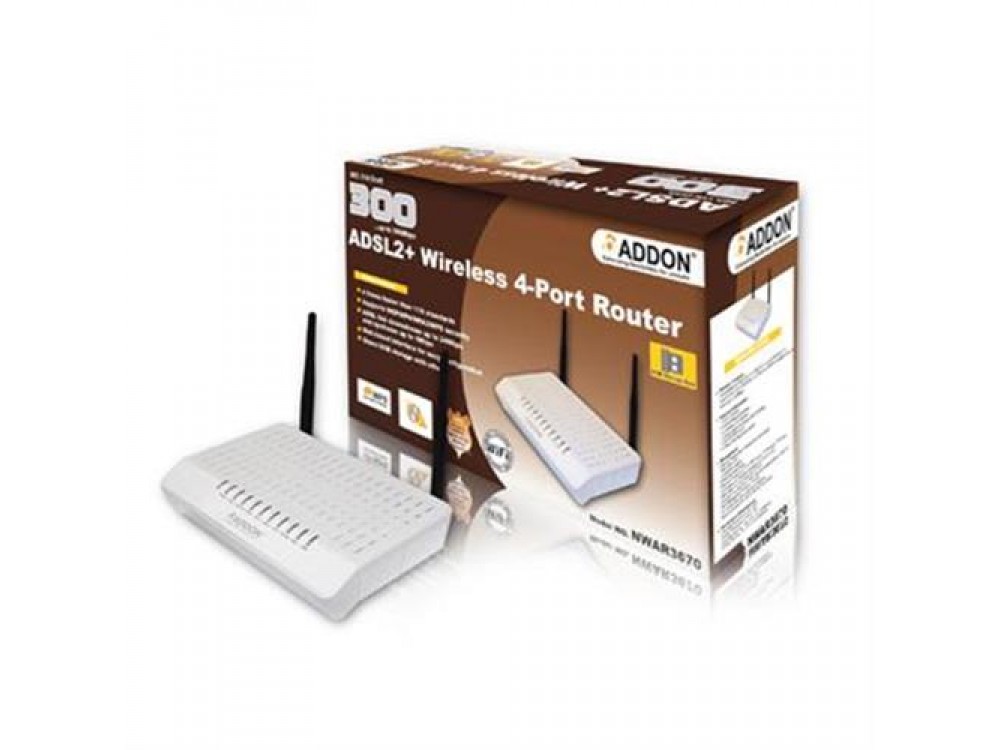

Addon NWAR3670 300Mbps W/L ADSL2+ Modem Router
Device Type:Wireless ADSL2+ Modem Router
-
Interface:
- RJ-11
- RJ-45
- USB 2.0
-
Ports:
- 1 x RJ-11
- 1 x WLAN/WPS button
- 1 x Reset Button
- 4 x RJ-J45
- 1 x USB host 2.0 interface
-
Standards:
- IEEE802.11b
- IEEE802.11g
- IEEE802.11n
- IEEE 802.3 10BaseT
- IEEE 802.3 100Base-TX
-
Transfer Rate:
- 10Mbps
- 11Mbps
- 54Mbps
- 100Mbps
- 300Mbps
-
Network Architecture Types:
- Ad Hoc
- Infrastructure
- Antenna Type:2 x Antenna
-
Frequency Range:
- 2422 MHz-2452 MHz (channel BW=40 MHz)
- 2400 MHz-2483.5 MHz (channel BW=20 MHz)
-
Modulation:
- 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
- 802.11b: CCK, DQPSK, DBPSK
- HT20 and HT40: 64 QAM, 16QAM, QPSK, BPSK
-
Range:
- 100m indoors coverage area
- 300m outdoors coverage area
- (varying depending on the actual environment)
-
Security:
- 64-128-bit WEP
- AES
- TKIP
- WPA
- WPA2
- 802.1x
-
Management:
- Web, TR069 and SNMP configuration management
- Telnet and SSH
- Restore to the factory defaults and keep key parameters, reboot the router
- Two-level user management, including administrator and user
- Ping diagnostics
-
LED indicators:
- 1 x Power
- 1 x ADSL
- 1 x Internet
- 4 x LAN
- 1 x WLAN
- 1 x WPS
- 1 x USB
-
Input power:
- Power Adapter
- Power Lead
- Operating Temperature:0°C to 40°C
- Product Width:185mm
- Product Height:43mm
- Product Length:152mm
- Gross Weight:0.72Kg
-
Special Features:
- 4 times faster than 11G standards
- Supports WEP/WPA/WPA2/WPS security
- ADSL link downstream up to 24Mbps and upstream up to 1Mbps
- Web-based interface for easy configuration
- Share USB storage with others
-
Package Contents:
- Router
- Quick Installation Guide
- Power Adapter
- 1 x RJ-11 Lead
- 1 x RJ-45 Lead
- Support CD
| Item Condition | |
| New | A brand-new, unused, unopened and undamaged item. |
