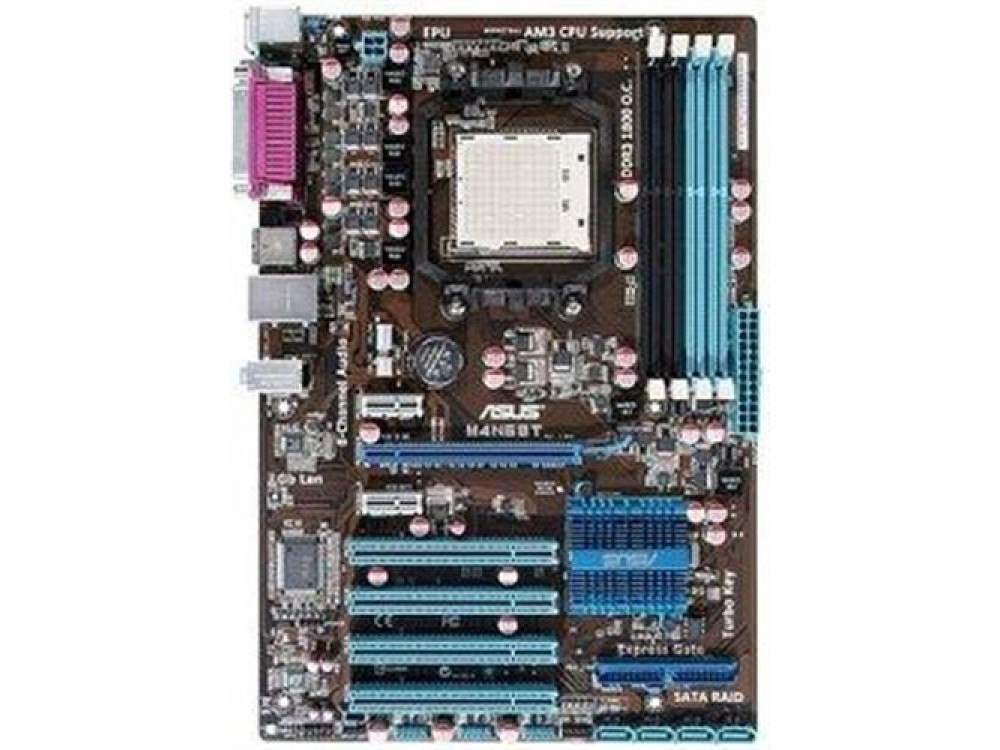

Asus Socket AM3 M4N68T Motherboard ATX
Asus Socket AM3 M4N68T Motherboard ATX
Brand: Asus
Product Condition: Used
Product Code: M4N68T (Used)
SKU: 100348
Availability: Out Of Stock
Price: £24.50
Description

Asus Socket AM3 M4N68T Motherboard ATX

Supplied with no Manual or Cables. Includes Backplate.

Specifications

CPU AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
Chipset NVIDIA nForce 630a
Memory 4 x DIMM, Max. 16GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
System Bus Up to 2.0 GT/s
Expansion Slots 1 x PCIe x16
2 x PCIe x1
4 x PCI
Storage Built-in Controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10, JBOD
LAN Realtek® 8211CL, 1 x Gigabit LAN Controller(s)
Audio VIA VT1708S 8-Channel High Definition Audio CODEC *1
- Supports : Multi-streaming, Anti-pop Function
USB Ports Built-in Controller :
10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
Overclocking Features Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features Turbo Key
ASUS Quiet Thermal Solution :
- ASUS Q-Fan
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
Accessories I/O Shield
BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0
Form Factor ATX Form Factor
12 inch x 8.2 inch ( 30.5 cm x 20.8 cm )
Note *1: Choose the chassis with HD audio module in front panel to support 8-Channel audio output.



Specification
Item Condition
Used An item that has been previously used. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.
